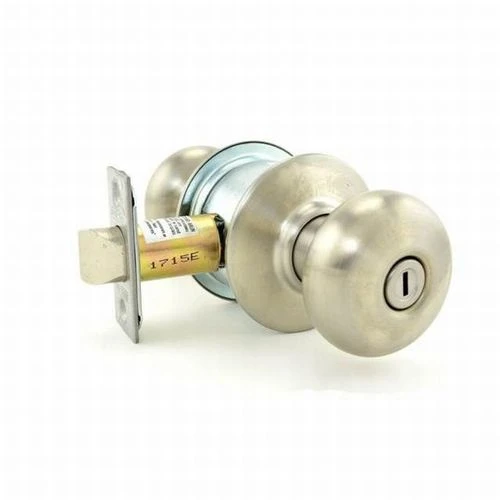

Schlage Commercial A40S PLY 630 A Series Privacy Plymouth Lock With 11116 Latch 10001 Strike Satin Stainless Steel Finish

Privacy Lock, Push-button locking, 2-3/8″ Backset Square Corner Springlatch, 2-3/4″ T-Strike Square Corner. 630 Satin Stainless
A SeriesCylindrical locks

The A Series cylindrical lock is Schlage’s first lock and continues to exceed ANSI/BHMA Grade 2 standards, allowing it to be used in a wide range of commercial and residential applications. A Series locks are available in ten finishes and five trim designs allowing it to fit any new or existing environments.

Specifications: Handing:

• Keyed functions are reversible. Non-keyed functions are not handed

Door thickness:

• 1 3/8″ to 1 7/8″ (35 mm to 48 mm) standar

Backset:

• 2 3/8″ (60 mm) standard. 2 3/4″ (70 mm)

Front:

• Steel. 1 1/8″ x 2 1/4″ square corner, beveled, for 2 3/4″ backset standard. Optional 1″ square corner, 1″ radius corner, and non-UL drive-in/round face

Lock chassis:

• Steel, zinc dichromate plated for corrosion resistance

Latch bolt:

• Brass, chrome plated, 1/2″ throw, deadlocking on keyed and exterior functions

Exposed trim:

• Wrought brass, bronze or stainless steel. Levers are pressure cast zinc, plated to match finish symbols

Strike:

• T-strike 1 1/8″ x 2 3/4″ (29 mm x 70 mm) x 1 1/8″ (29 mm) lip to center with box standard

Cylinder and keys:

• Commercial: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock
• Residential: 6-pin C keyway, keyed 5-pin

Keying options:

• Interchangeable core and Primus XP high security cylinders. Master keying, grand master keying, and construction keying

Warranty:

• Commercial: three-year limited

Finishes: Georgian:

• 605 – Bright brass
• 606 – Satin brass
• 609 – Antique brass
• 625 – Bright chromium plated
• 626 – Satin chromium plated
• 643e – Aged bronze
• e = an equivalent finish to the BHMA standard.

Orbit:

• 605 – Bright brass
• 606 – Satin brass
• 609 – Antique brass
• 612 – Satin bronze
• 613 – Oil rubbed bronze
• 625 – Bright chromium plated
• 626 – Satin chromium plated
• 643e – Aged bronze
• e = an equivalent finish to the BHMA standard.

Plymouth:

• 605 – Bright brass
• 606 – Satin brass
• 609 – Antique brass
• 612 – Satin bronze
• 613 – Oil rubbed bronze
• 625 – Bright chromium plated
• 626 – Satin chromium plated
• 629 – Bright stainless steel
• 630 – Satin stainless steel
• 643e – Aged bronze
• e = an equivalent finish to the BHMA standard.

Tulip:

• 605 – Bright brass
• 606 – Satin brass
• 609 – Antique brass
• 625 – Bright chromium plated
• 626 – Satin chromium plated
• 643e – Aged bronze
• e = an equivalent finish to the BHMA standard.

Levon:

• 605 – Bright brass
• 612 – Satin bronze
• 613 – Oil rubbed bronze
• 626 – Satin chromium plated
• 643e – Aged bronze
• e = an equivalent finish to the BHMA standard.

Certifications: ANSI:

• Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.

Federal:

• Meets FF-H-106C.

California state reference code:
(Formerly Title 19, California State Fire Marshal Standard)

• All levers with a return to door of 1/2″ (64mm) or less comply.

UL/cUL:

• All locks listed for A label single doors, 4′ x 8′. Letter F and UL symbol on latch front indicate listing.

ADA compliant:

• Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
