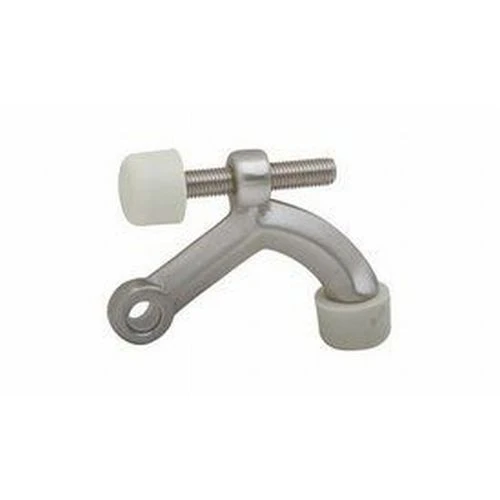

IVES 70A15 70 Hinge Pin Door Stop, Satin Nickel

Door opening adjustments 85° to 125°, Aluminum substrate. 670 Satin Nickel
70Hinge pin door stops

Residential door stops

Features:

• Economical solution for use on low frequency, light weight, residential 3 1/2 or 4″ hinged doors where the installation of a standard door stop or overhead is not desirable

• Designed for narrow trim installation

• High quality rubber bumpers – shoulder on stud supports rubber through entire body for engineered cushioning

• Removable bushings accommodate 1/4″ to 5/16″ diameter hinge pins

• Easy installation

• White rubber and nylon tips
  (Note: 70A – 716 ships with black rubber tips)

Specifications: Material substrate:

• Made from brass, aluminum, or zinc

Available accessory items:

• Replaceable white rubber tip available

Finishes – Brass: 605:

• Description – Bright brass
• Substrate – Brass
• Finish – B3

606:

• Description – Satin brass
• Substrate – Brass
• Finish – B4

609:

• Description – Blackened brass
• Substrate – Brass
• Finish – B5

612:

• Description – Satin bronze
• Substrate – Brass
• Finish – B10

613:

• Description – Oil rubbed bronze
• Substrate – Brass
• Finish – B10B

619:

• Description – Satin nickel
• Substrate – Brass
• Finish – B15

622:

• Description – Matte black
• Substrate – Brass
• Finish – B-BLK

625:

• Description – Bright chrome
• Substrate – Brass
• Finish – B26

626:

• Description – Satin chrome
• Substrate – Brass
• Finish – B26D

B-643e/716:

• Description – Aged bronze
• Substrate – Brass

Finishes – Aluminum: 666:

• Description – Bright brass
• Substrate – Aluminum
• Finish – A3

667:

• Description – Satin brass
• Substrate – Aluminum
• Finish – A4

A5:

• Description – Blackened brass
• Substrate – Aluminum

668:

• Description – Satin bronze
• Substrate – Aluminum
• Finish – A10

703:

• Description – Oil rubbed bronze
• Substrate – Aluminum
• Finish – A10B

669:

• Description – Bright nickel
• Substrate – Aluminum
• Finish – A14

670:

• Description – Satin nickel
• Substrate – Aluminum
• Finish – A15

672:

• Description – Bright Chrome
• Substrate – Aluminum
• Finish – A26

702:

• Description – Satin Chrome
• Substrate – Aluminum
• Finish – A26D

A-643e/716:

• Description – Aged bronze
• Substrate – Aluminum

A-BLK:

• Description – Matte black
• Substrate – Aluminum

A-W:

• Description – White
• Substrate – Aluminum
• Finish –

Finishes – Zinc: Z406E:

• Description – Dark bronze
• Substrate – Zinc

Z-643e/716:

• Description – Aged bronze
• Substrate – Zinc
