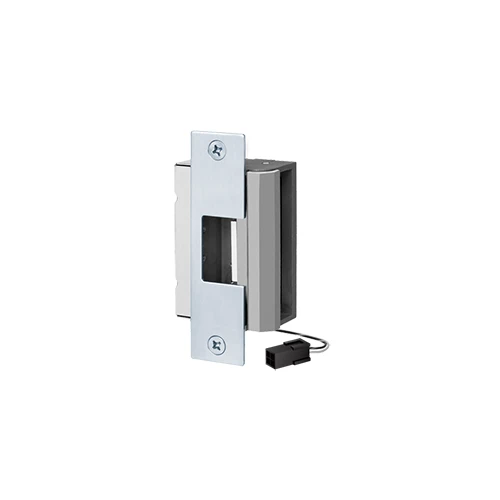

Hager 149649 2930 US26D MDB – Universal Application Electric Strike

2930 US26D MDB
SPECS :

Accessories:

• BUZZ – buzzer 12/24 VDC (2-679-0028)
• RECT – rectifier for AC operation (2-679-0029)

Applications:

• Grade 1 Heavy-Duty Electric Strike
• Designed for installation in hollow metal frames with Grade 1 cylindrical and mortise locksets with up to 3/4″ (19 mm) throw latch bolts and 1″ deadbolts (25 mm)
• For use on fire-rated and non-fire-rated doors (fail-safe is not permitted on fire-rated doors)
• New construction and retrofit applications

Certifications:

• ANSI A156.31 compliant, Grade 1
• UL – 1034 Burglary Resistant (interior use application)
• BP – 10254
• IL10C.3H Fire-Rated, 4’ x 8’ door
• NFPA 252
• CAN 4-5104 (Fail Secure Only)
• UL tested 1,500 lbs. (Factory tested 2,500 lbs.)

Electrical Specifications:

• 600/300 @ 12/24V DC – Solenoid
• SPDT, 3A @ 30VDC – LBM (Optional)
• SPDT, 3A @ 30VDC – DSM (Optional)
• SPDT, 3A @ 30VDC – DBM (Optional)

Features:

• Retrofits existing ANSI 4-7/8″ (124 mm) strike prep – no centerline relocation
• Internally mounted solenoid, no heat in keeper
• Non-handed
• Fail secure standard; field reversible to fail-safe
• Field selectable voltage – 12/24V, AC/DC
• Plug-in connectors
• Fail secure standard; field reversible to fail-safe
• 1/8″ (3 mm) horizontal alignment adjustment
• 70 ft-lb dynamic strength
• Tamper-resistant

Firerating: Not approved for fail-safe operation on fire-rated doors.

Frequency: Exceeded 1,000,000 cycles

Handing: Non-handed unless ordered with deadbolt monitoring

Notes: Not to be installed in an inactive door leaf

Options:

• Latch Bolt Monitor (LBM) – Door closed/latched or open/unlatched status & Access control anti-tailgate/timer reset signal
• Door Secure Monitor (DSM) – Door secure and unlocked monitoring & Mantraps, interlocks, airlocks
• Deadbolt Monitoring (DBM (Handed)) – Signals deadbolt projected or retracted & Occupied signal rooms/bathrooms & Manual lockout of access control by deadbolt

Product Description: Electric Strike – Mortise lock w/ Deadbolt, Dual Voltage 12/24VDC, ANSI/BHMA A156.31 Grade 1, UL Listed 3-hour fire rated, Non-handed

Product Number: 2930
