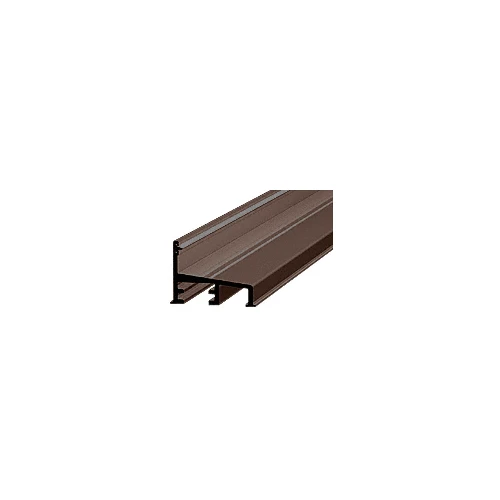

CRL DK630RB Oil Rubbed Bronze 72″ Bottom Sill For CK/DK Cottage Series Sliders

DK Cottage Series components were especially designed by CRL to add versatility to our Frameless Sliding Shower Door Kits. They allow the option of adding additional panels to create a designer enclosure, or simply construct your own sliding unit by combining the various parts. Stock lengths of Headers, Header Fillers, Side Jambs, Bottom Sills, Sidelite Sills, and Clear Polycarbonate Vertical Jambs, along with Top Hangers and other accessory items round out the items available. Use these components to build the enclosure you require, or we can assist with your design. Email or fax us a drawing (with dimensions) of the shower opening and we will put together a customized kit for you that will include everything you will need (except the glass and the silicone). Installation instructions are included in each custom kit.
NOTE: All fixed panels of glass must be 3/8″ (10 mm) thick.
SPECIFICATIONS:
Material: Extrusions (Aluminum), Jamb Seals (Polycarbonate), Towel Bar (Brass Tubing), Knob (Solid Brass)
Glass Thicknesses: 1/4″ or 3/8″ (6 or 10 mm) (Glass not included)
Recommended Maximum Slider Sizes: 1/4″ (6 mm) Glass:
60″ W x 72″ H (1.52 x 1.83 m) or 72″ W x 60″ H (1.83 x 1.52 m); 3/8″ (10 mm) Glass: 72″ W x 80″ H (1.83 x 2.03 m)
Glass Fabrication: Towel Bar – Two 1/2″ (12 mm) Diameter Holes, 24″ (610 mm) Center-to-Center; Knob – One 1/2″ (12 mm) Diameter Hole; Top Hangers – Four 1/2″ (12 mm) Diameter Holes (two per glass panel)
Product Warning:
Hardware Package includes Corners and Header Bracket required to convert Inline Shower Door Kit into an angled enclosure when used with the appropriate extrusions from above. Must be ordered separately. Polycarbonates are translucent in color.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
