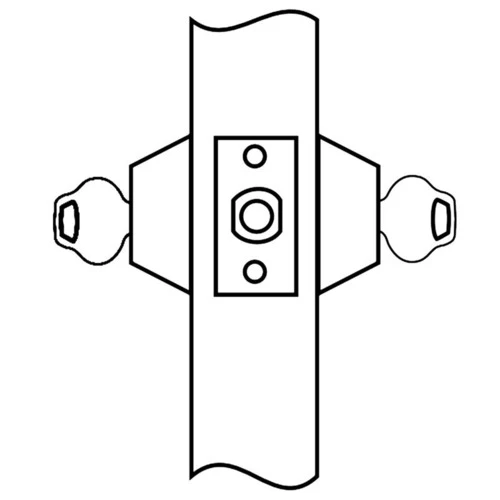

Corbin Russwin DL2212 605 DL2212 Double Cylinder Deadlock, Bright Polished Brass

Grade 2, Double Cylinder, 605 Bright Brass, 2-3/4″ Backset, Keyed Random
DL2200 SeriesDeadlocks

Corbin Russwin Auxiliary Locks provide security for a wide range of applications. Our auxiliary and special purpose locks including padlocks and deadlocks allow end users to meet specific security needs.

Specifications: Certification:

• UL10B/UL10C Fire Rated Auxiliary Lock for A label and lesser class doors when used with a correspondingly rated primary latching device.
• ANSI/BHMA A156.36 Certified Grade 2

Handing:

• Non-handed

Door Thickness:

• Standard: 1-3/4″ (44mm)

Backset:

• Standard: 2-3/4″ (70mm)

Front:

• Standard: brass or stainless steel, 2-1/4″ (57mm) x 1-1/8″ (29mm)

Deadbolt:

• 1″ throw, solid steel deadbolt with hardened, free spinning, steel pin insert

Strike:

• Standard; 2-3/4″ (70mm) x 1-1/8″ (29mm)

Cylinder:

• Standard: brass, 6-pin, L4 keyway, 0-bitted

Keys:

• Two nickel silver standard

Keying Features Available:

• Master keying
• Construction master keying
• Security
• Visual key control
• Concealed key control

Warranty:

• One-year limited

This product contains 2 cylinders per lock and is typically keyed alike in quantities of 1.
